QuadPro Smart Switch

Unleash Your Smart Imagination Control with QuadPro

The QuadPro ZG-003-RF isn't just another smart switch – it's your gateway to professional-grade home automation. With dual Zigbee and RF technology, this versatile 4-channel controller delivers unmatched flexibility for both smart home enthusiasts and professional installers.

Why Choose QuadPro?
• Dual Control Technology: Seamlessly switch between Zigbee and RF control
• Professional-Grade Reliability: Industrial-strength 10A relays
• Versatile Applications: From garage doors to advanced lighting systems

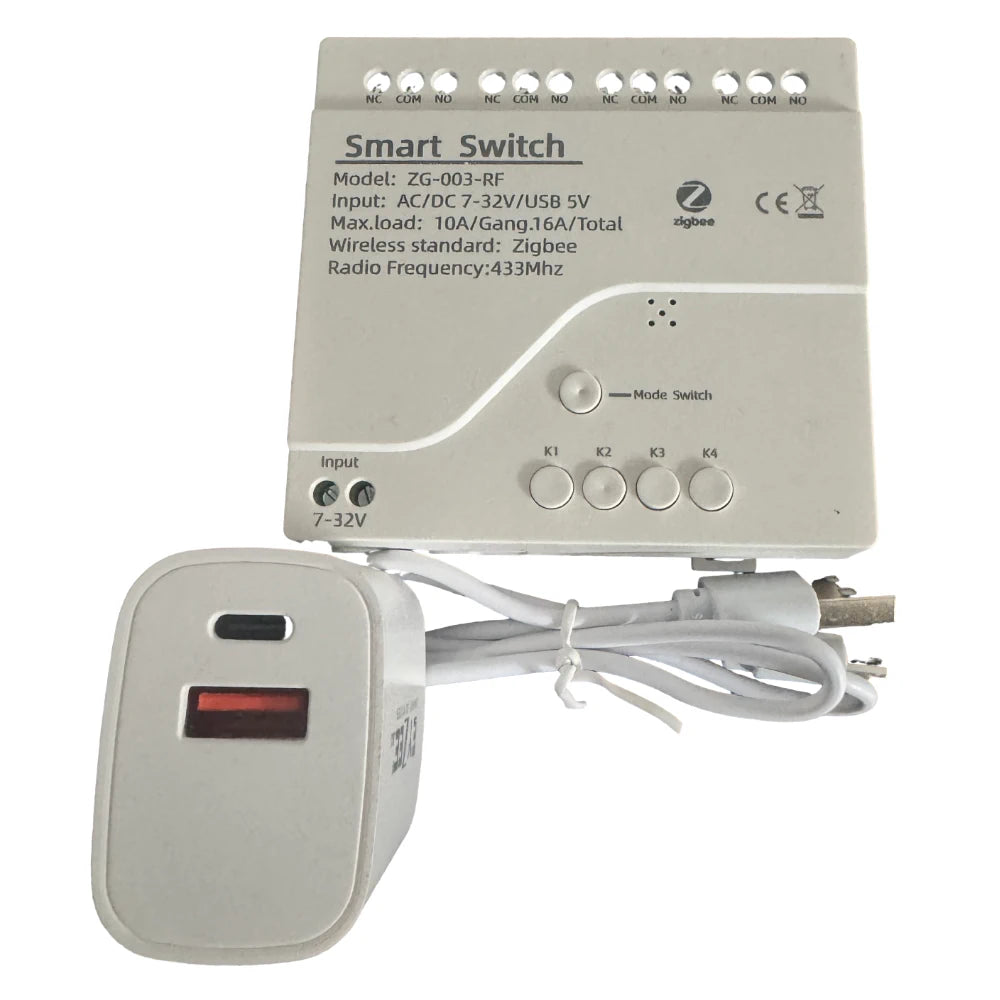

• Flexible Power Options: Works with both USB and DC 7-32v power sources
• Compact Yet Powerful: Small footprint, massive capabilities

Smart Home Integration Made Simple
✓ Works with major smart home platforms
✓ Works with Alexa, Google Home, Smart Things
✓ Works with Apple HomeKit (via homekit hub)
✓ Works with Home Assistant
✓ Easy setup and configuration
✓ Professional terminal layout
✓ Multiple operating modes for any scenario

The QuadPro Smart Switch is perfect for controlling 12-24 volt motors, windows, curtains and gate controllers, or any low voltage systems that you want to link to your home or industrial automation system. Can act as an intelligent interface between environmental conditions and your smart home network used as a Smart Trigger Interface or Environmental Gateway by linking sensors or external data:

1. Light/Dark Detection:
- Connect a photocell sensor to one channel
- Use the switch as a "Dusk/Dawn Gateway"
- Trigger other smart devices based on natural light levels
- Perfect for automated lighting schedules

2. Temperature Monitoring:
- Connect temperature sensors to channels
- Act as a "Temperature Threshold Controller"
- Trigger heating/cooling/fan systems
- Ideal for climate control automation

3. Monitor Open Doors and Windows:
- Connect door sensors to channels
- Act as a "Door Left Open Threshold Controller"
- Trigger alarm or turn off heating/cooling systems
- Ideal for climate control automation

Key Benefits:
• Convert analogue sensor inputs into smart home triggers
• Create conditional automations based on environmental data
• Bridge traditional sensors with modern smart home systems
• Maintain backup RF control while using Zigbee for smart features

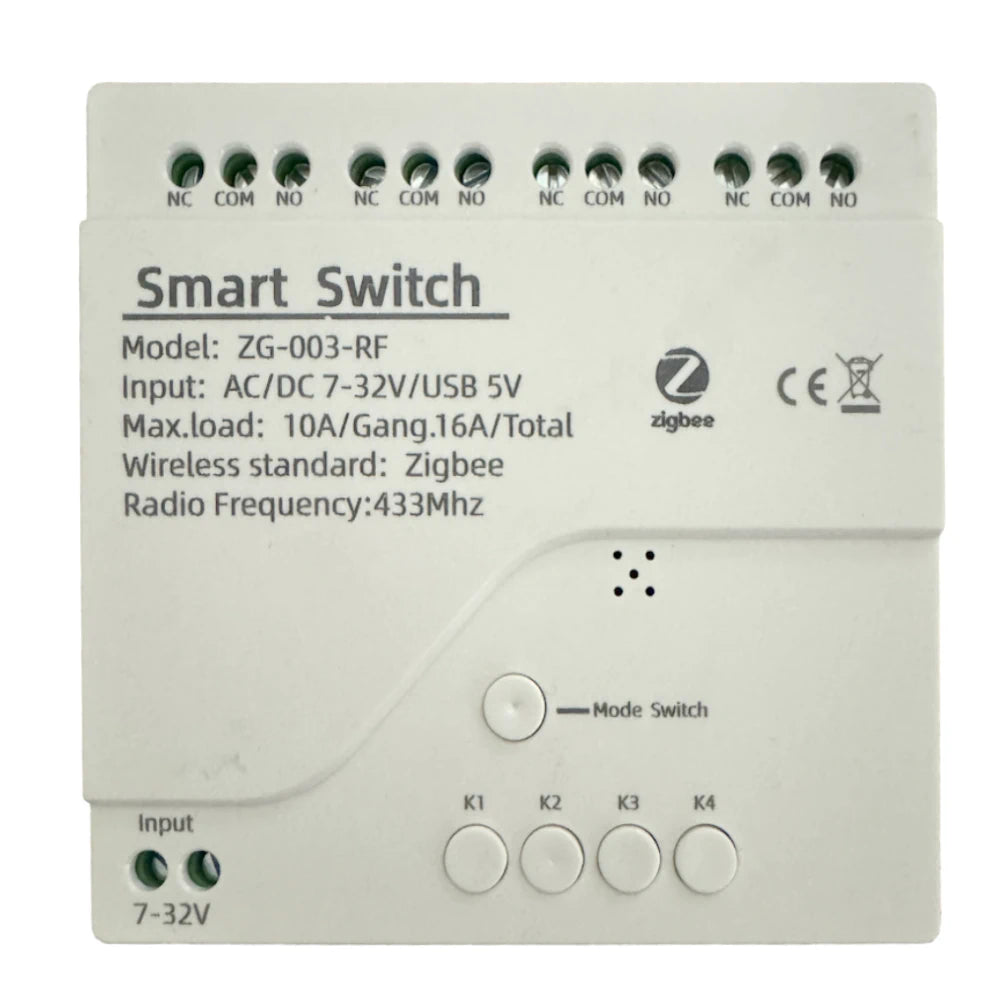

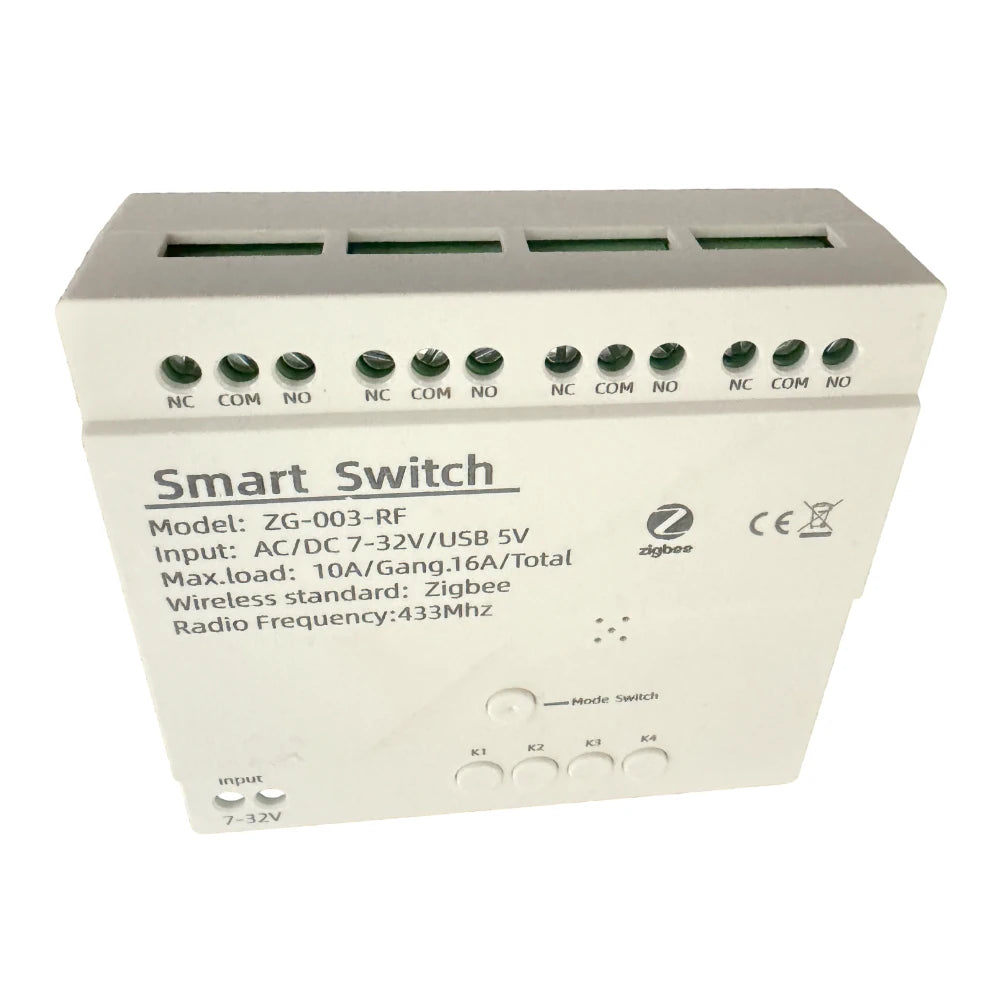

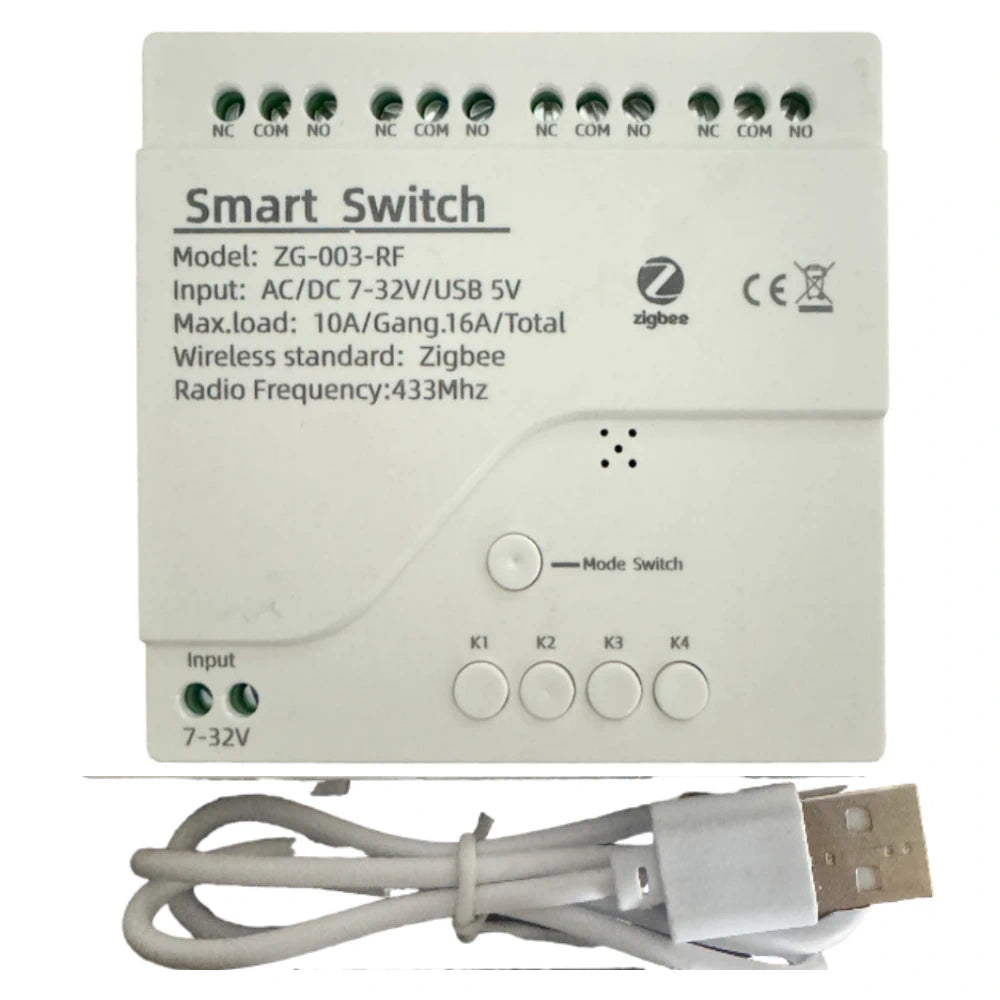

QuadPro ZG-003-RF Technical Specifications:

GENERAL SPECIFICATIONS:
Model Number: ZG-003-RF
Product Type: 4-Channel Smart Switch Controller

PHYSICAL SPECIFICATIONS:
Dimensions: 80mm x 75mm x 25mm

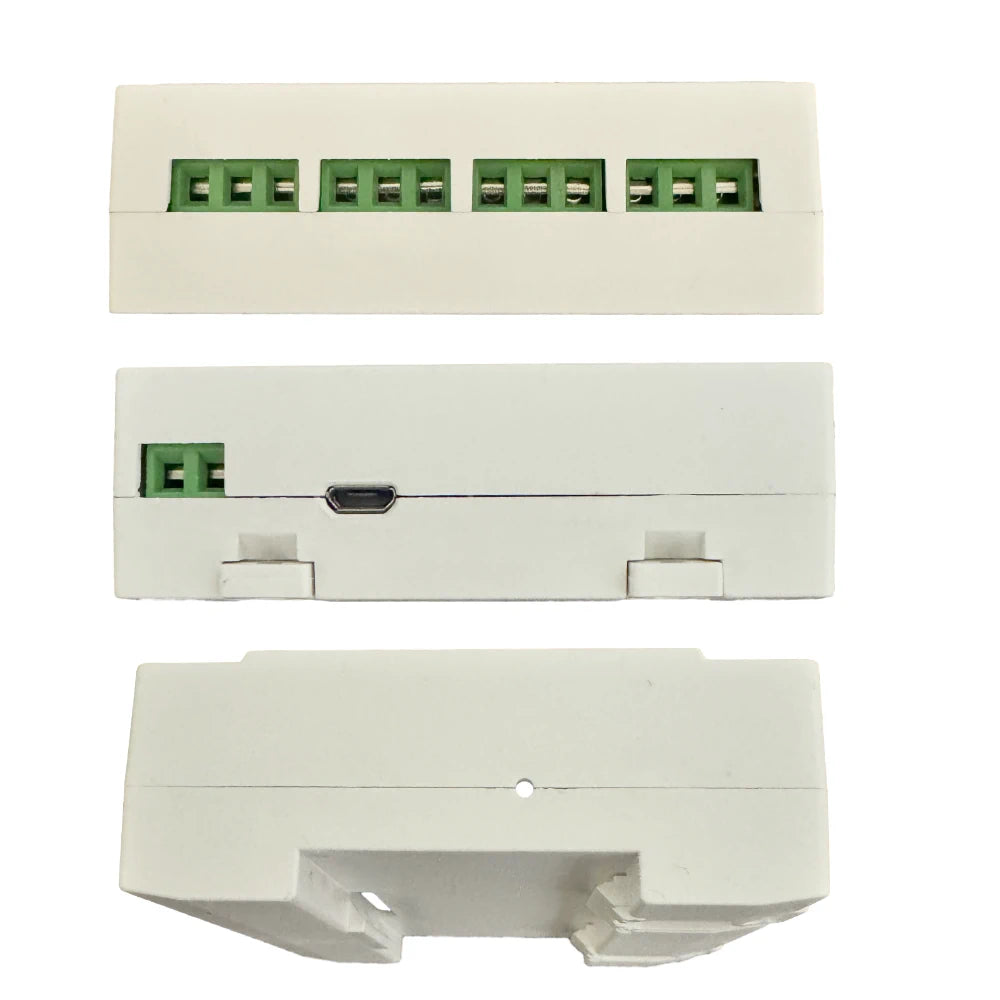

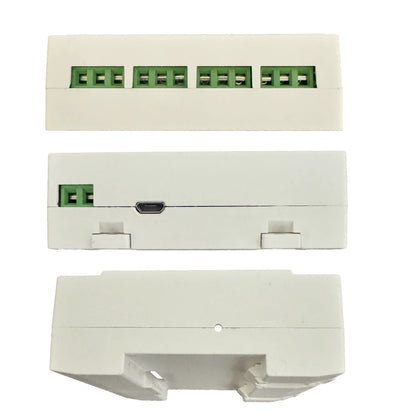

Installation Type: DIN rail or surface mount
Housing Material: High-grade flame-retardant plastic
Colour: White

ELECTRICAL SPECIFICATIONS:
Power Input Options to power switch:
- USB: 5V DC
- DC Power: 7-32V DC

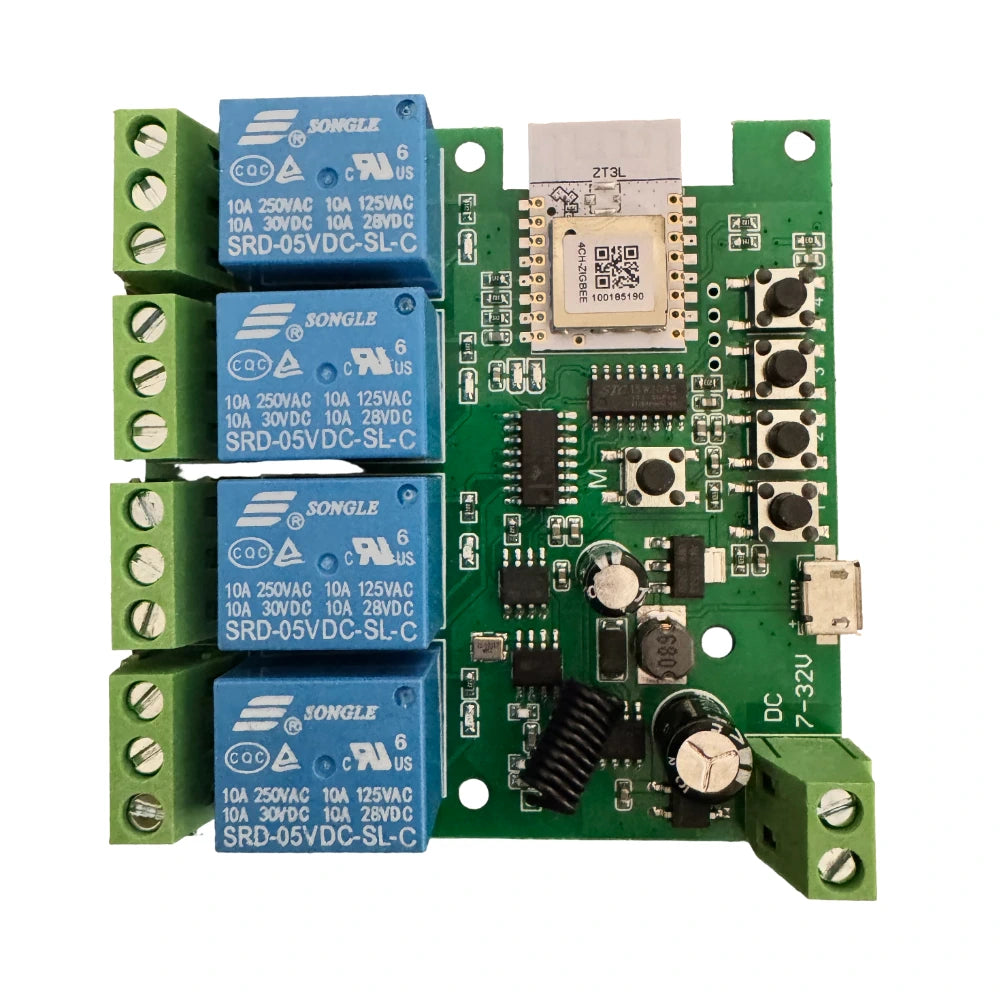

Relay Specifications:
- Number of Channels: 4
- Relay Rating: 10A per channel
- Contact Type: SPDT (NO/COM/NC)
   (NO=normally open, COM=Common, NC=Normally closed)
- Maximum Switching Voltage: 7-32vdc

COMMUNICATION:
Wireless Protocols:
- Zigbee 3.0

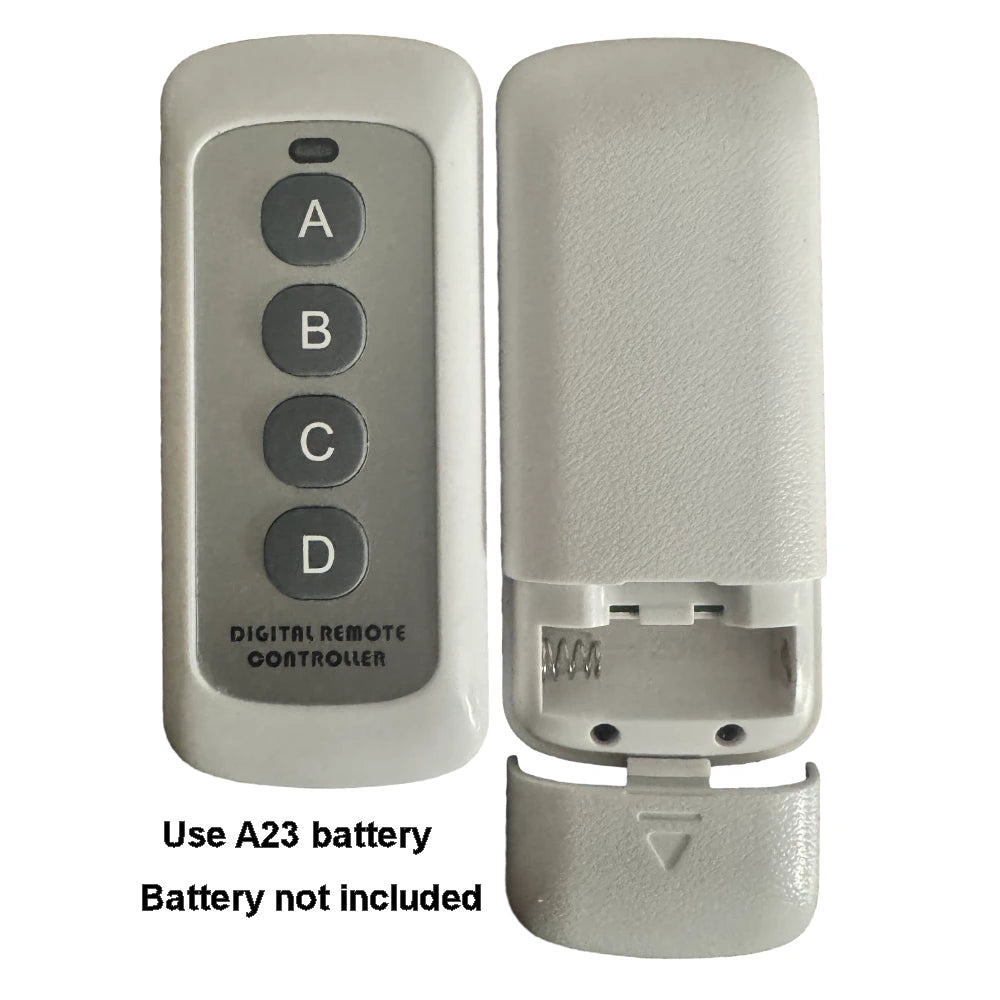

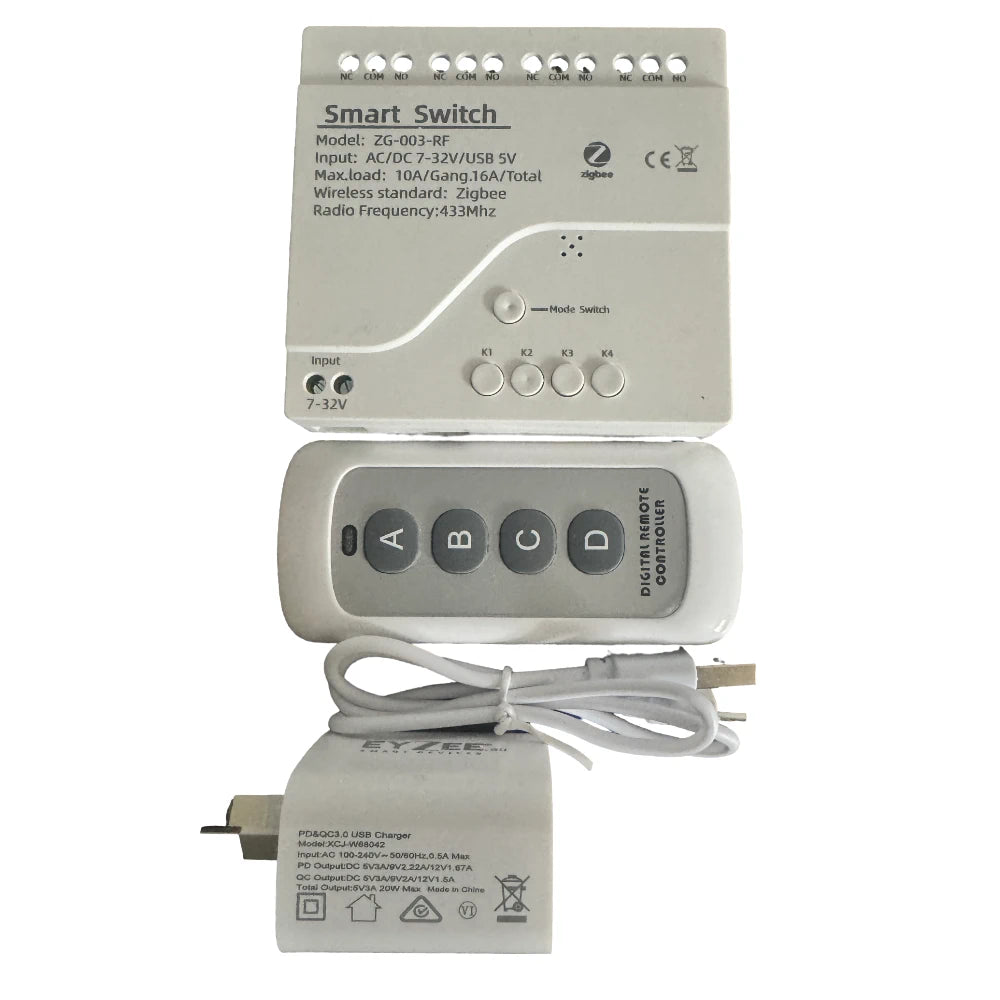

- RF Remote Control
Zigbee Range: Acts as forwarding mesh router to extend range.
RF Frequency: 433Mhz
RF Range: 10-30m

OPERATING MODES:
1. On/Off Mode (via mode button)
2. Momentary Mode (via mode button)
3. Timed On/Off Mode
4. Inching Timer Range: 1sec to 60min
5. Countdown mode
6. weekly schedule
7. Schedule On Off durations
8. Random On Off

WARRANTY & SUPPORT:
Warranty Period: 12 months
Technical Support: Monday-Friday, 9AM-5PM AEST
